Magnetisation of the ICM/IGM by dwarf galaxies

(see also Project A3 of DFG Research Unit Magnetisation of Interstellar and Intergalactic Media - The Prospects of Low-Frequency Radio Observations)

What is this about?

With the operation of LOFAR, a great opportunity exists to shed light on a problem of some cosmological significance. Diffuse radio synchrotron emission not associated to any obvious discrete sources as well as Faraday rotation in clusters of galaxies both indicate that the intergalactic or intracluster medium (IGM, ICM) is pervaded by a weak magnetic field, along with a population of relativistic particles. Both, particles and fields must have been injected into the IGM either by Active Galactic Nuclei (AGN) or by normal starforming galaxies. Excellent candidates for the latter are starburst dwarf galaxies, which in the framework of hierarchical structure formation must have been around in large numbers. If this is true, one should be able to detect extended synchrotron halos of formerly highly relativistic particles around local starburst or post-starburst dwarf galaxies. With LOFAR, one should easily find these out to the Coma Cluster and beyond.

Dwarf galaxies play a key role in the enrichment of the ICM or IGM, not only as far as heavy elements are concerned, but possibly also regarding the magnetisation. According to the standard bottom-up scenario of galaxy formation, primeval galaxies must have injected much of their (enriched) interstellar medium (ISM) into the IGM during the initial bursts of star formation, thereby ”polluting” large volumes of intergalactic space because of their high number density. By the same token, the following two properties render dwarf galaxies potentially very efficient in injecting a relativistic plasma into their surroundings: first, they exist in large numbers, and second, they possess low escape velocities, making it easier to expel their interstellar gas, as compared to massive spiral galaxies. Such galactic winds are in fact seen in some prototypical low-mass galaxies in the local universe.


Outflows and the magnetisation of galaxy clusters

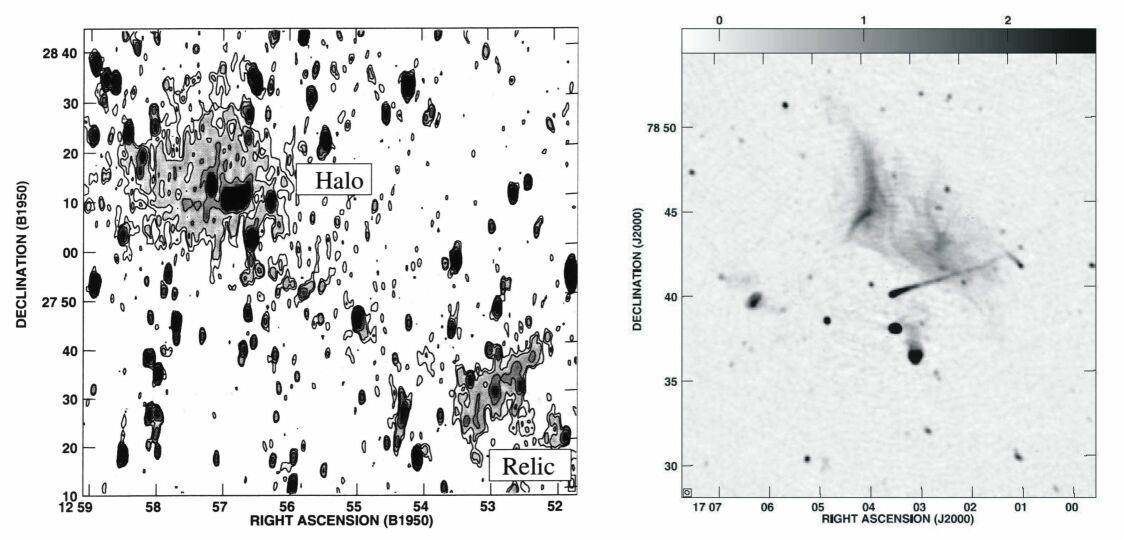

Galaxy clusters are known to be pervaded by a relativistic plasma, i.e. particles with (mildly) relativistic energy and magnetic fields. Two observations lead to this inference: Fig. 1 shows examples. Diffuse radio continuum emission is seen in the central regions of some clusters of galaxies, so-called radio halos, and peripheral radio continuum structures are frequently found such as in the Coma Cluster (left panel, from Giovannini et al. 1993), and radio relic in A2556 (right panel, from Clarke & Enßlin (2006). The central radio halos are produced by either primary or secondary electrons (see Fig. 1, left). The problem with primary electrons is their relatively short lifetime, limited by synchrotron and inverse-Compton losses (Eqn. 1):

where (Eqn. 2)



is the equivalent magnetic field strength of the cosmic microwave background. This latter equation results from the similar dependences of synchrotron and inverse-Compton losses (Eqn. 3),



where umag is the magnetic energy density u_mag = B²/8π and u_rad is the energy density of the radiation field (which for the perfect black-body CMB radiation is ∝ T⁴_cmb). Eqn. (1) then tells us that, for instance, with a magnetic field of B = 1 μG, particles radiating at 1.4 GHz will be rendered invisible after t_1/2 = 10^₈ yr in the local universe (z = 0). Hence, primary electrons require continuous injection. However, diffuse radio halos are never associated with any obvious “fresh” sources, one therefore has to invoke secondary electrons. These are produced by hadronic collisions of relativistic protons with the thermal gas in a pion-muon chain. Owing to their much larger mass, protons have synchrotron lifetimes exceeding a Hubble time. Finally, it should pointed out that completely independent evidence for the magnetisation of (at least the) central regions of galaxy clusters comes from the observation of Faraday rotation (e.g. Clarke et al. 2001).

Clusters undergoing large-scale merging frequently exhibit so-called radio relics, mostly on their periphery (Fig. 1, right). In contrast to radio halos, these are significantly polarised, probably reflecting magnetic-field enhancement in the compression zones where the subclusters produce large-scale shockwaves during their mutual penetration. Naturally, this also provides an efficient acceleration mechanism. Particles that were formerly highly relativistic (electrons in particular) have cooled via synchrotron and inverse-Compton losses. During a cluster merger, they are boosted to high energies again, and the acceleration regions shine up in the radio regime. Kronberg et al. (1999) were the first to raise the question whether low-mass galaxies could have made a significant contribution to the magnetisation of the IGM (apart from more massive starburst galaxies and AGN). Owing to their large number (observed and predicted in a CDM cosmology) and their injection of relativistic particles as described above, they could have played a cardinal role in the context of this cosmologically important scenario. If true, it is to be expected that dwarf galaxies are “wrapped” in large envelopes of previously highly relativistic particles - and magnetic fields, which are pushed out of them during epochs of vigorous star formation. Bertone et al. (2006) have discussed this more quantitatively and made predictions for the strengths of magnetic seed fields, to be then amplified by large-scale dynamos over cosmic time. In particular, they also predict the existence of magnetic voids. Of course, in magnetising the ICM/IGM, low-mass galaxies have been competing with AGN. Judging from the radio luminosities of the “culprits”, it is clear that nevertheless low-mass galaxies may have contributed significantly. A typical starburst dwarf galaxy emits a monochromatic radio luminosity of P_1.4 GHz ≈ 10^20.5 W Hz⁻¹, while this figure is P_1.4 GHz ≈ 10^_24.7 W Hz⁻¹ for radio galaxies in the FRI/II transition regime. Hence, the radio power produced by AGN is some 15000 times larger than that of dwarf galaxies. However, (ΛCDM) cosmology helps at this point, since dwarf galaxies have come in huge numbers if the bottom-up scenario of structure formation holds. Furthermore, the lifetime of radio galaxies is limited (see, e.g., Bird et al. 2008), τ_life ≈ 1.5 · 107 yr, with duty cycles of τ_life ≈ 8·10⁸ yr. Hence, this yields an effective activity period of active ≈ 2 ·10⁸ yr ≈ 0.015 × τ_Hubble. Finally, it should be noted that central so-called “mini-halos”, which are bright extended radio sources located in the centres of cooling-flow clusters (Perseus A, Hydra A, Virgo A) cannot do the magnetisation job: they are pressure-confined.


Local templates

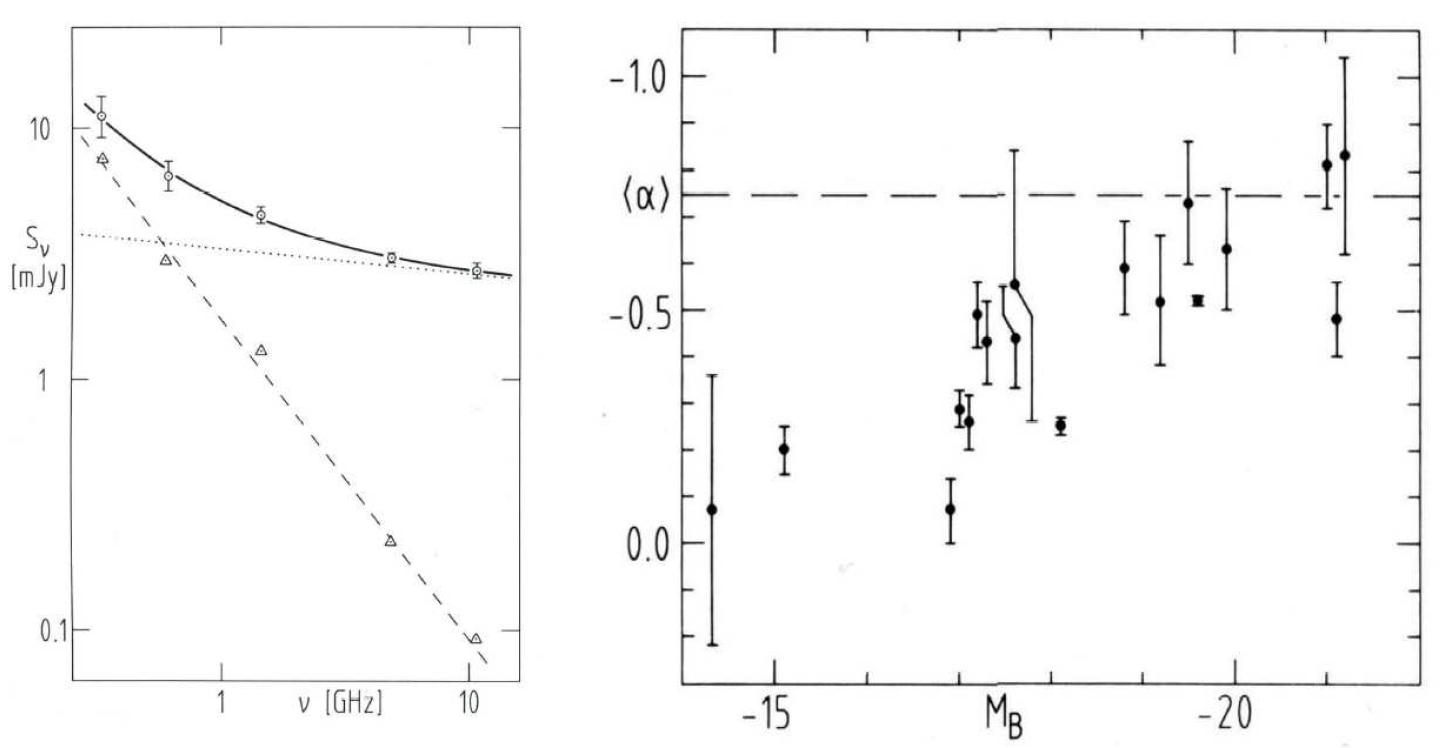

Measurements of the radio continuumradiation of dwarf galaxies over a large frequency range have shown that ongoing star formation in them is accompanied by enhanced radio continuum emission (Klein 1982, Klein et al. 1991). Owing to their shallow gravitational potentials, the containment of relativistic cosmic-ray particles in such galaxies is, however, low, as inferred from studies of the spectral index and magnetic-field structure. This is readily demonstrated by the left panel of Fig. 2, which shows the radio continuum spectrum of the BCDG II Zw70, with the thermal (free-free, dotted line) and the nonthermal (synchrotron, dashed line) components indicated. The solid line represents the total flux density fitted to the measurements (from Skillman & Klein 1988). The right panel shows spectral indices of the integrated radio emission of a sample of low-mass galaxies, mostly BCDG (from Klein et al. 1991). It is obvious that in contrast to massive spiral galaxies, whose radio continuum is dominated by synchrotron radiation at cm wavelengths (Gioia et al. 1982) there is a lack of it for dwarf galaxies. The lack is more pronounced the lower the luminosity (hence mass) of the dwarf galaxy (Klein et al. 1991). These relativistic particles streaming into the halos of dwarf galaxies lose their energy on a time scale of ∼10⁸ yr according to Eqn. (1) via synchrotron and Inverse-Compton radiation. They are thus quickly rendered invisible at cm wavelengths, while their synchrotron emission will still be detectable at metre waves where their lifetime is 5 to 10 times longer. The containment of the relativistic plasma and its possible transport out of a galaxy is obviously influenced by the overall magnetic-field configuration. In massive disk galaxies (spirals) the face-on view shows that the magnetic field closely follows the spiral arms, while the edge-on view discloses a plane-parallel magnetic field close to the galactic planes, while the halo field flares at large galacto-centric distances, rendering its overall appearance ’X-shaped’ (Beck 2008).

The existence of winds in low-mass galaxies is inferred from the observed kinematics of the gas (measured with slit spectroscopy), but can arguably be also inferred from measurements of the temperature of the hot gas. For instance, Martin (1998) found the outflow velocities in NGC1569 to exceed the escape speed, and della Ceca et al. (1996) derived a temperature of its hot, X-ray-emitting gas to exceed the virial temperature. The transport of a relativistic plasma out of this galaxy is strongly suggested by two observations (Kepley et al. 2010), illustrated in Fig. 3. Shown here is the radio (synchrotron + free-free) radiation of the starburst dwarf galaxy NGC1569, and the magnetic field orientation, derived from the linear polarisation at 3 cm wavelength. Clearly, NGC1569 possesses a radio halo, as revealed by VLA and WSRT observations, which extends out to about 2 kpc at 1.4 GHz (see Fig. 3, left). Further evidence for a galactic wind is the projected orientation of its magnetic field as deduced from measurements of the linear radio polarisation, which is radial throughout (Fig. 3, right). This magnetic field is just dragged along with the wind, as the energy density of the wind is about 30 times that of the magnetic field. A similar finding was made by Chyzy et al. (2000) for the dwarf irregular NGC4449, which also possesses a low-frequency radio halo (Klein et al. 1996).


Lifetime and size of radio halos

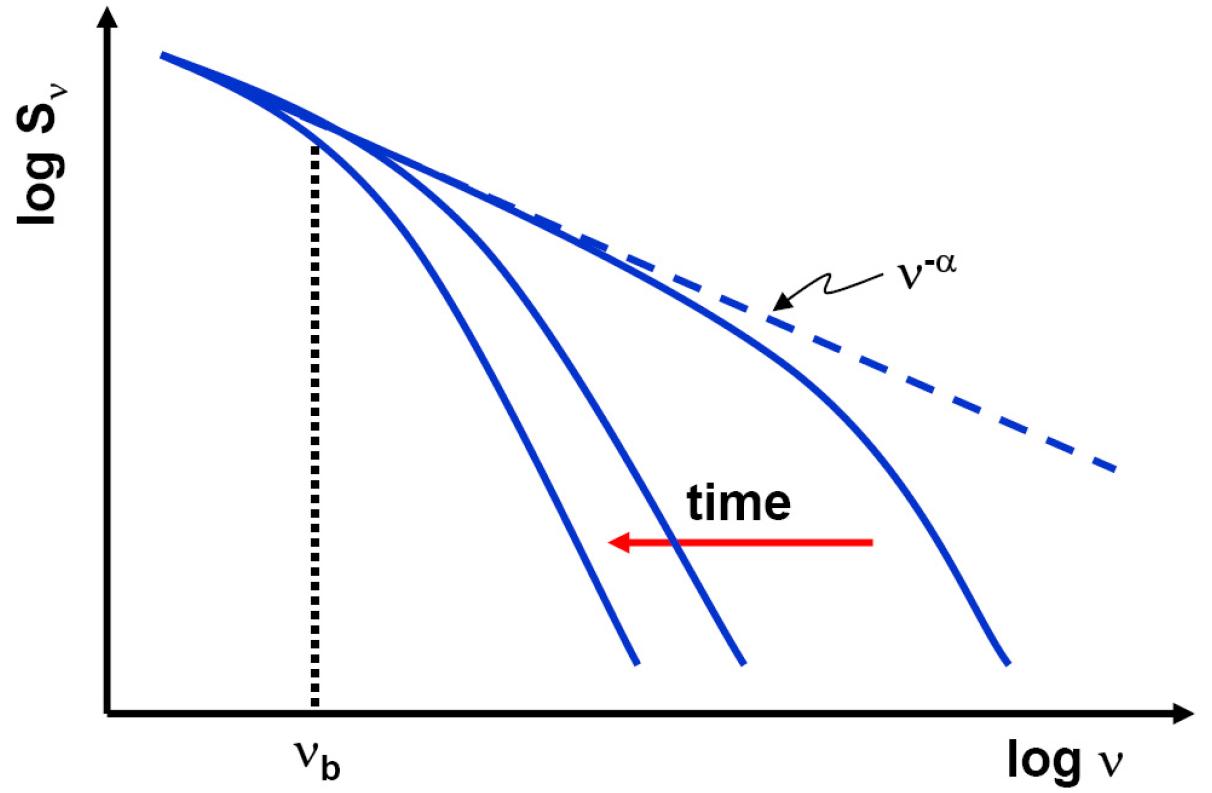

The lifetime of low-frequency halos around dwarf galaxies can be estimated using Eqn. (1). With μG magnetic fields in their surroundings the dominant loss mechanism will be inverse Compton, the lifetime of relativistic electrons radiating at 120 MHz then being of order 500 Myr, much longer than for those seen at cm wavelengths. This is also illustrated in Fig. 4, which sketches the temporal variation of an “aging” synchrotron spectrum. Assume that the energy spectrum of the particles initially extended to infinity. As time elapses, high-energy particles quickly lose their energy, producing a break in the spectrum. This gives rise to a corresponding break in the radiation spectrum, which wanders more and more slowly towards lower frequencies as time elapses. Hence, it takes much more time for this break to arrive at frequencies observed, e.g., with LOFAR. The break frequency measures the time elapsed since the last starburst with its supernova activity has ceased. While aging, particles that have left a dwarf galaxy by a wind will slowly diffuse away from it. This can happen with a maxmimum speed corresponding to the Alfvenic one, i.e. (Eqn. 4)



where n_e is the number density of thermal electrons (or protons) of the surrounding medium. Taking B = 1 μG and n_e = 0.001 cm⁻³, the relativistic particles radiating at 120 MHz could move out to 30 . . . 40 kpc within 500 Myr, or correspondingly further when caught at still lower frequencies. Hence, such halos could have total sizes of 60 . . . 80 kpc.


Observations with LOFAR

LOFAR will easily detect low-frequency halos of dwarf galaxies out to large (100 Mpc, Coma Cluster) distances. The LOFAR survey, which will cover about half the sky and will be conducted within a year’s time, will provide a 5-σ flux limit of 0.1 mJy/b.a. at 120 MHz in 1 hour (with a synthesized beam of 1.′′3, for long baselines). Using the synchrotron halo of NGC4449 as a template, we can estimate the expected brightness at LOFAR frequencies, which is about 0.4 mJy/b.a. at 120 MHz. Its detection should hence be feasible. Assuming a 60 kpc diameter as estimated above and placing it at D ≈ 100 Mpc it would be seen with a ∼ 2′ angular extent. In a cluster or group environment, such halos are likely to trail behind the galaxy as it moves in the cluster potential with speeds much larger than the diffusion speed of the relativistic particles. This will actually provide some information on the proper motion of dwarf galaxies having undergone star formation over the past 10⁹ yrs. An impressive example of such trailing low-frequency radio structures is seen in the Perseus Cluster, where the headtail radio source NGC1265 leaves behind a huge radio tail that can be traced over a projected path of 1.1 Mpc at low frequencies (Sijbring & de Bruyn 1998) So, low-frequency radio emission “memorises” starburst activity up to about 1 Gyr after its termination, a time scale much longer than that of any other integral property of galaxies (Hα and FIR luminosity, or broad-band optical/UV/IR colours). This emission therefore also provides a powerful diagnostic tool to search for post-starburst galaxies and to explore their recent-to-past star-formation rate (SFR) and magnetic field evolution. In this context, LOFAR will also deliver important new information to address the longstanding question pertaining to possible evolutionary links between the two main classes of late-type dwarf galaxies, dwarf irregulars (dIs) and blue compact dwarf galaxies (BCDGs). BCDGs in a post-starburst phase will be easily identifiable by their weak radio emission at cm wavelengths in conjunction with their bright radio halos at meter wavelengths. By contrast, non-starbursting late-type dwarf galaxies will be rendered undetectable at cm wavelengths, while their low-frequency radio continuum emission should still exhibit the synchrotron halos created during past activity phases. Hence, if the standard evolutionary scenario, i.e. from BCDGs to dIs, is correct, then LOFAR will discover a large population of quiescent dIs with low-frequency radio halos.
