The Violent Interstellar Medium in Dwarf Galaxies: Atomic Gas

Elias Brinks and Fabian Walter


[Fig. 1]
Fig. 1. H I surface brightness map of IC 2574. The greyscale is a linear representation of the H I surface brightness. The beamsize (6.4" × 5.9") is indicated in the lower left. Forty-eight holes were detected whose outlines are indicated by ellipses

[Fig. 2]

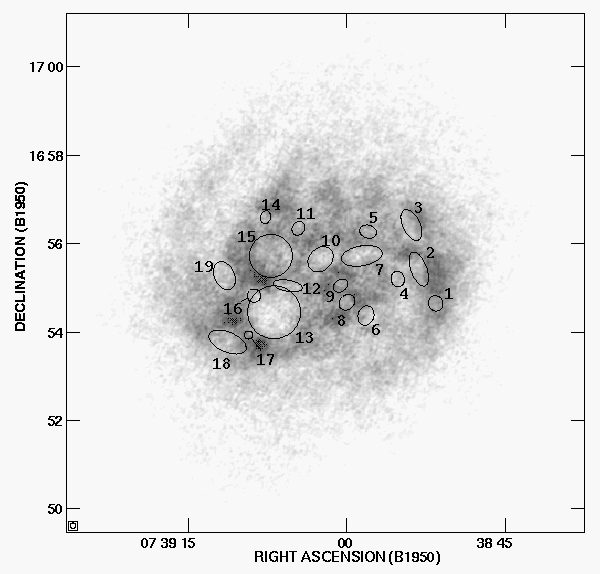

Fig. 2. Location of the H I holes found in DDO 47 (with numbers). The greyscale is a linear representation of the H I surface brightness. Nineteen holes were detected whose outlines are indicated by ellipses

[Fig. 3]
Fig. 3. H I surface brightness map of IC 10. The greyscale is a linear representation of the H I surface brightness. Eight holes were detected whose outlines are indicated by ellipses

[Figs. 4 and 5]
Fig. 4. Comparison of the relative distribution, in percentage, of the absent masses of the H I holes in IC 2574, M 31, M 33 and Ho II (left panel)
Fig. 5 Comparison of the relative distribution, in percentage, of the energies required to produce the H I holes in IC 2574, M 31, M 33 and Ho II (right panel)

[Figs. 6 and 7]
Fig. 6. Comparison of the relative distribution, in percentage, of the diameters of the H I holes in IC 2574, M 31, M 33 and Ho II (left panel)
Fig. 7. Comparison of the relative distribution, in percentage, of the ages of the H I holes in IC 2574, M 31, M 33 and Ho II (right panel)

[Figs. 8 and 9]
Fig. 8. Comparison of the relative distribution, in percentage, of the expansion velocities of the H I holes in IC 2574, M 31, M 33 and Ho II (left panel)
Fig. 9. The relation between expansion velocity and diameter in each of the four galaxies. Crosses represent observed values. The plotted curves are lines of constant energy (based on Chevalier 1974) at levels of 1049, 1050, 1051 and 1052 ergs (from left to right). The straight lines correspond to constant age and are drawn at 107 years (steepest slope), 5·107 years and 108 years (right panel)
